Description

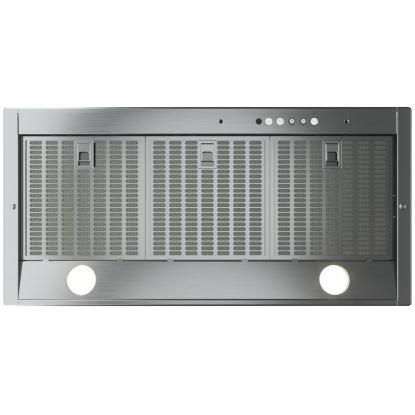

This Faber Inca HC hood insert features advanced electronic controls, an optional remote control and LED lights. The Inca HC has stainless mesh dishwasher safe grease filters and has the ability to vent up or to the back to minimize ductwork and maximize power.
Features
BACKLIT ELECTRONIC CONTROLS
Backlit electronic controls with a White LED light to indicate the current speed.
EASY SNAP MOUNTING CLIPS
Installation with easy with built-in adjustable clips that tighten onto the sides of the cabinet floor.
Additional Features
REMOTE CONTROL (OPTIONAL)
Control all features of the hood from the convenience of a wireless remote control. (sold separately)
VARIDUCT SYSTEM TOP AND REAR DIRECT VENTING
Easy kitchen integration with top and direct rear venting and recirculation options.
DELAYED AUTO-OFF
Automatically turns the fan off after a set time (varies by the hood).
INTENSIVE SPEED
Turns on at the highest speed for 10 minutes.
Specifications
General
Series Name
Inca HC
Blower Included
Yes
Airflow
560 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Ducting Information
• Ducting Top / Direct Rear Vent (Vari-Duct)
• 6" Round
• 6" Round
Speeds
4
Additional Information
• Electronic Control With White LED
• 2x 5W LED Lighting
• 15 Minute Auto Shut Off
• 10 Minute Intensive Speed
• Stainless Mesh Grease Filters
• Easy Snap Mounting Clips
• CFM: 150 / 295 / 395 / 560 (Boost)
• Sones: 2.8 / 4.3 / 6.0 / 7.5 (Boost
• 2x 5W LED Lighting
• 15 Minute Auto Shut Off
• 10 Minute Intensive Speed
• Stainless Mesh Grease Filters
• Easy Snap Mounting Clips
• CFM: 150 / 295 / 395 / 560 (Boost)
• Sones: 2.8 / 4.3 / 6.0 / 7.5 (Boost
Accessories
Optional
• Charcoal Filter Kit: FILTER1
• Long Lasting Charcoal Filter Kit: FILTER1LL
• Remote Control: REMCTRL2
• Fixed Wiring Box: WIREBOX
• Long Lasting Charcoal Filter Kit: FILTER1LL
• Remote Control: REMCTRL2
• Fixed Wiring Box: WIREBOX
Dimensions
Class Width
28"
Width
28.37 inch(es) / 72.06 cm
Height
12.94 inch(es) / 32.86 cm
Depth
13.75 inch(es) / 34.93 cm
Additional Dimensions
Cut out dimensions (W x D): 27 5/8" x 13 9/16"
Warranty
Warranty
Limited 2 Years
UPC
UPC#
7612985592253
