Description

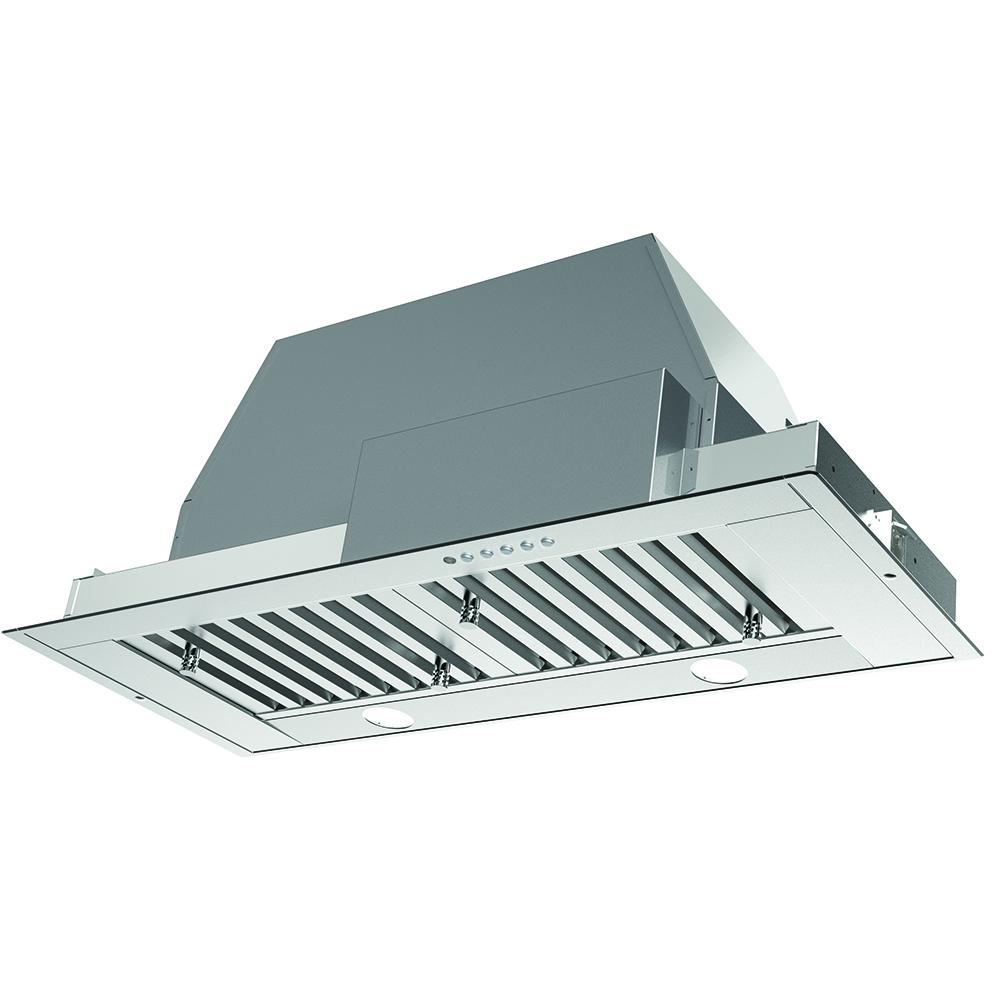

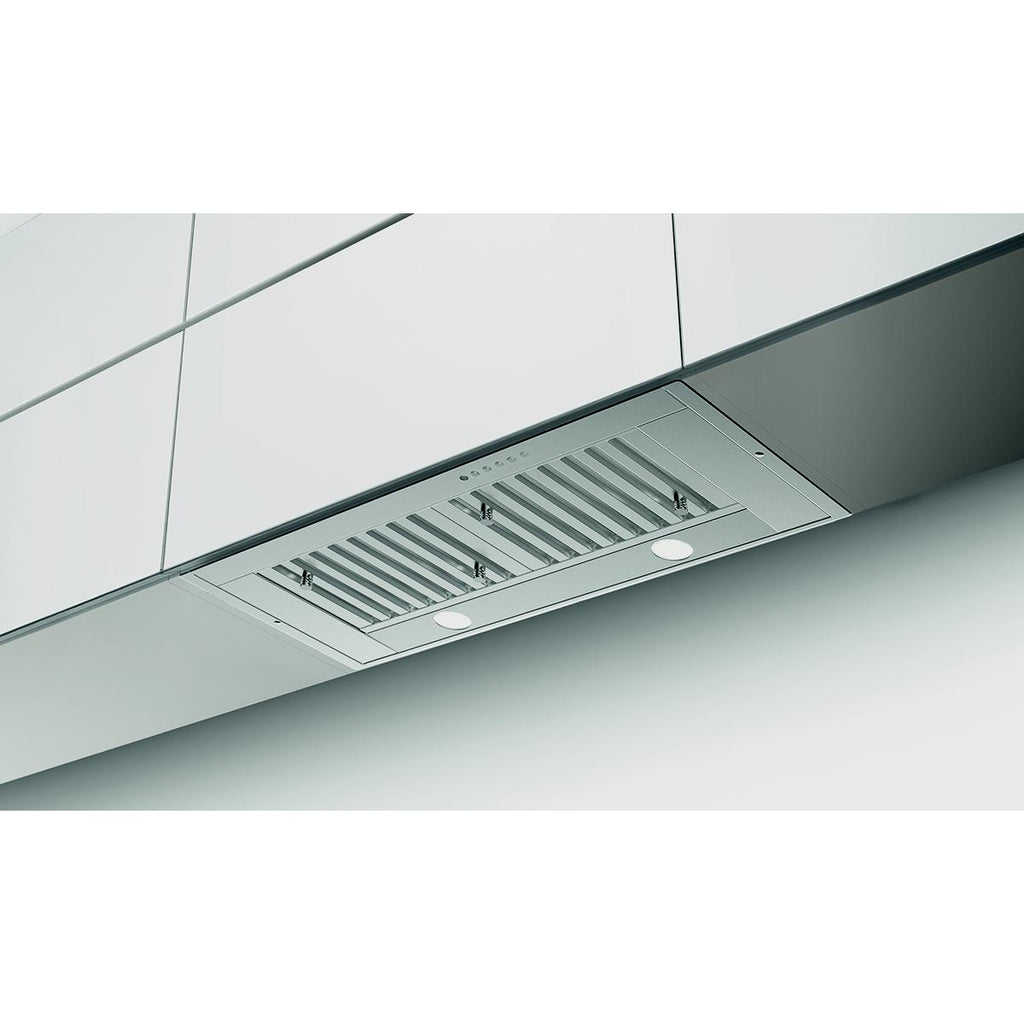

This Faber Pro style built-in range hood with a depth of 13 3/4" makes it an ideal choice for custom depth 15" cabinetry and perfect for kitchen remodeling projects. The restaurant style baffle filters and all metal motor housing and impellers will stand up to the heat!
Features
EASY SNAP MOUNTING CLIPS
Installation with easy with built-in adjustable clips that tighten onto the sides of the cabinet floor.
PRO BAFFLE FILTER
Professional style baffle grease filters, which are dishwasher safe and are able to stand up to pro cooking
PRO MOTOR
The motor in this hood is surrounded in metal with all metal impellers for top performance.
DIRECT REAR VENTING
Vent the ducting up or rotate the blower to the back to avoid extra duct work when on an outside wall.
Specifications
General
Series Name
Inca SD
Blower Included
Yes
Airflow
600 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Technologies
Variable Air Management (VAM system)
Ducting Information
• Top/rear ducting (Vari-Duct)
• 6" round
• 6" round
Speeds
4
Additional Information
• Electronic controls with white LED
• LED lighting (2 x 5W)
• Easy snap mounting clips
• Professional style baffle grease filters
• Pro motor with metal impellers
• 10-minute intensive speed
• 15-minute auto shut off
• CFM: 150, 295, 395, 560
• Sones: 2.8, 4.3, 6.0, 7.5
• LED lighting (2 x 5W)
• Easy snap mounting clips
• Professional style baffle grease filters
• Pro motor with metal impellers
• 10-minute intensive speed
• 15-minute auto shut off
• CFM: 150, 295, 395, 560
• Sones: 2.8, 4.3, 6.0, 7.5
Accessories
Included
Power cord
Optional
• FILTER1: Charcoal Filter Kit
• FILTER1LL: Long Lasting Charcoal Filter Kit
• REMCTRL2: Remote Control
• LINE30ST / LINE36ST: Stainless Steel Liner 30 and 36"
• MUDAMPER6 / MUDAMPER8: Universal Make-Up Air Damper
• WIREBOX: Fixed Wiring Box
• FILTER1LL: Long Lasting Charcoal Filter Kit
• REMCTRL2: Remote Control
• LINE30ST / LINE36ST: Stainless Steel Liner 30 and 36"
• MUDAMPER6 / MUDAMPER8: Universal Make-Up Air Damper
• WIREBOX: Fixed Wiring Box
Dimensions
Class Width
30"
Width
28.37 inch(es) / 72.07 cm
Depth
13.75 inch(es) / 34.93 cm
Additional Dimensions
• Cut out: 29" 27 5/8" w x 13 9/16" d
• Height inside cabinet: 12 15/16" high
• Height inside cabinet: 12 15/16" high
Warranty
Warranty
Limited 2 Years
UPC
UPC#
7612985636223
