Description

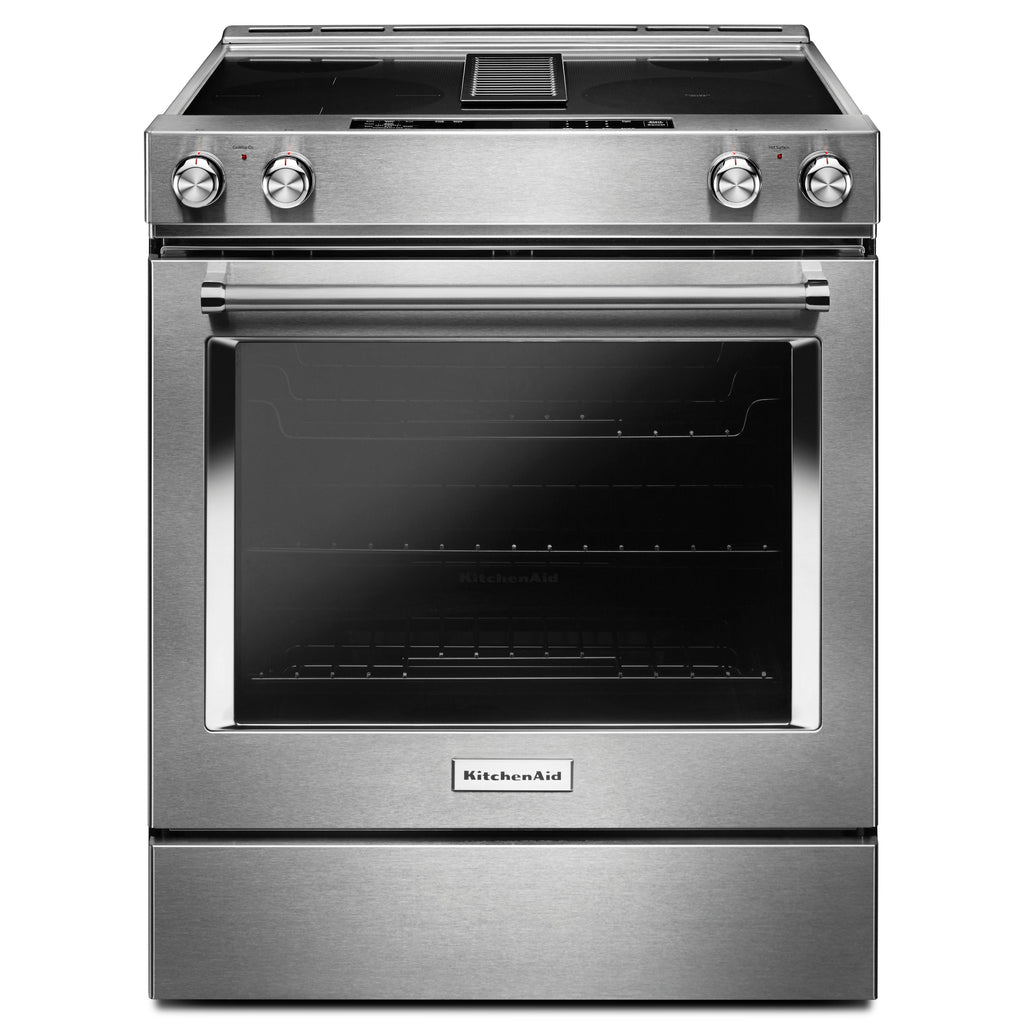

This all-in-one eclectic range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odors can be removed outside or filtered air can be recirculated inside. This range helps you achieve flawless cooking results thanks to Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated perfectly. It also has a Steam Rack that offers the ability to add moisture to the oven and enhances cooking results.
Features

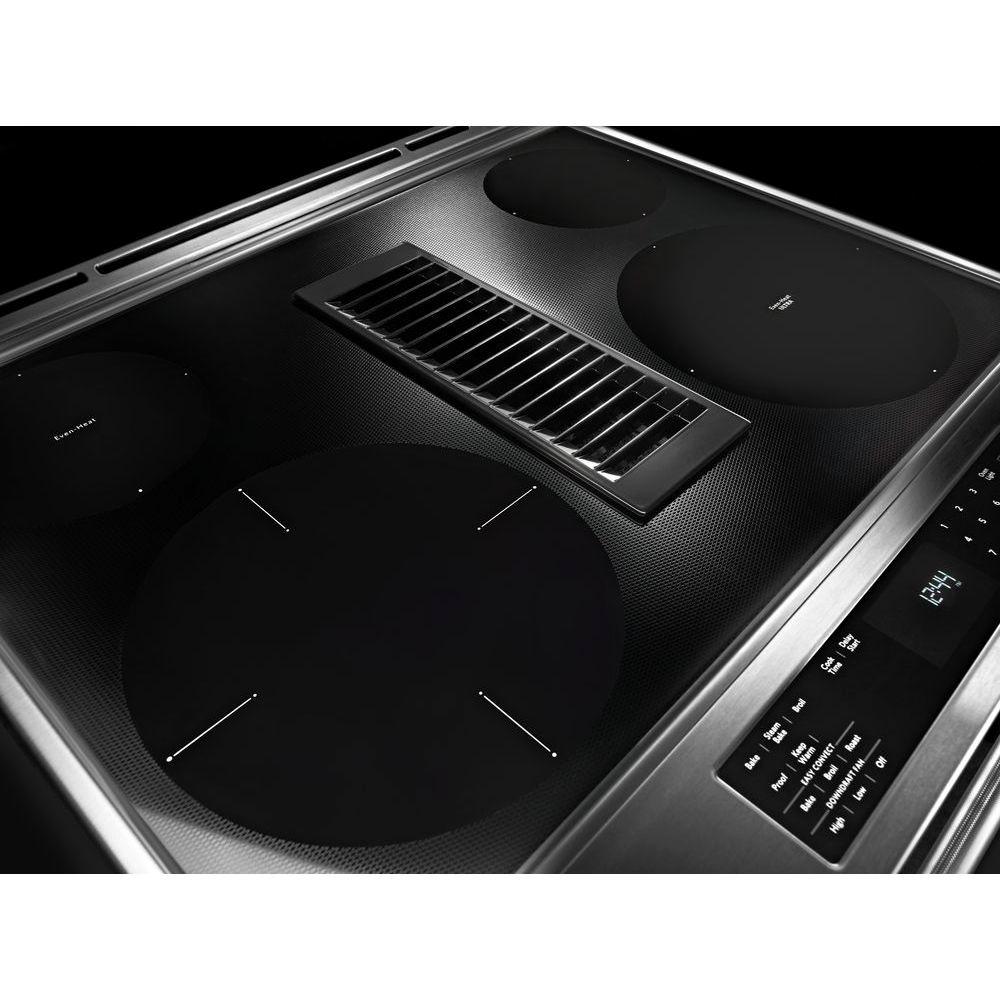

DOWNDRAFT
Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.

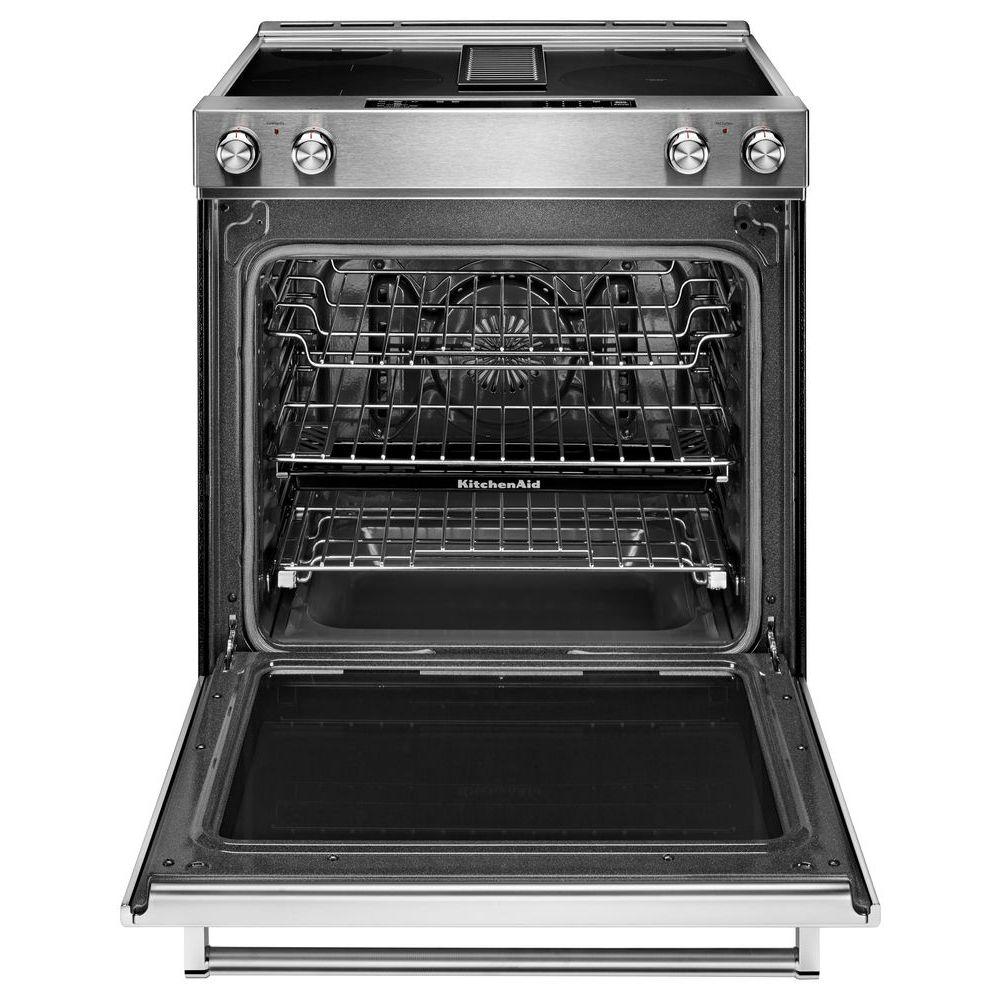

EVEN-HEAT™ TRUE CONVECTION
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
STEAM RACK
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
AQUALIFT®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
EASYCONVECT™ CONVERSION SYSTEM
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
GLASS TOUCH CONTROLS
Offer an intuitive, easy-to-use touch screen experience.
Additional Features
SIDE TRIM ACCESSORY KIT
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.

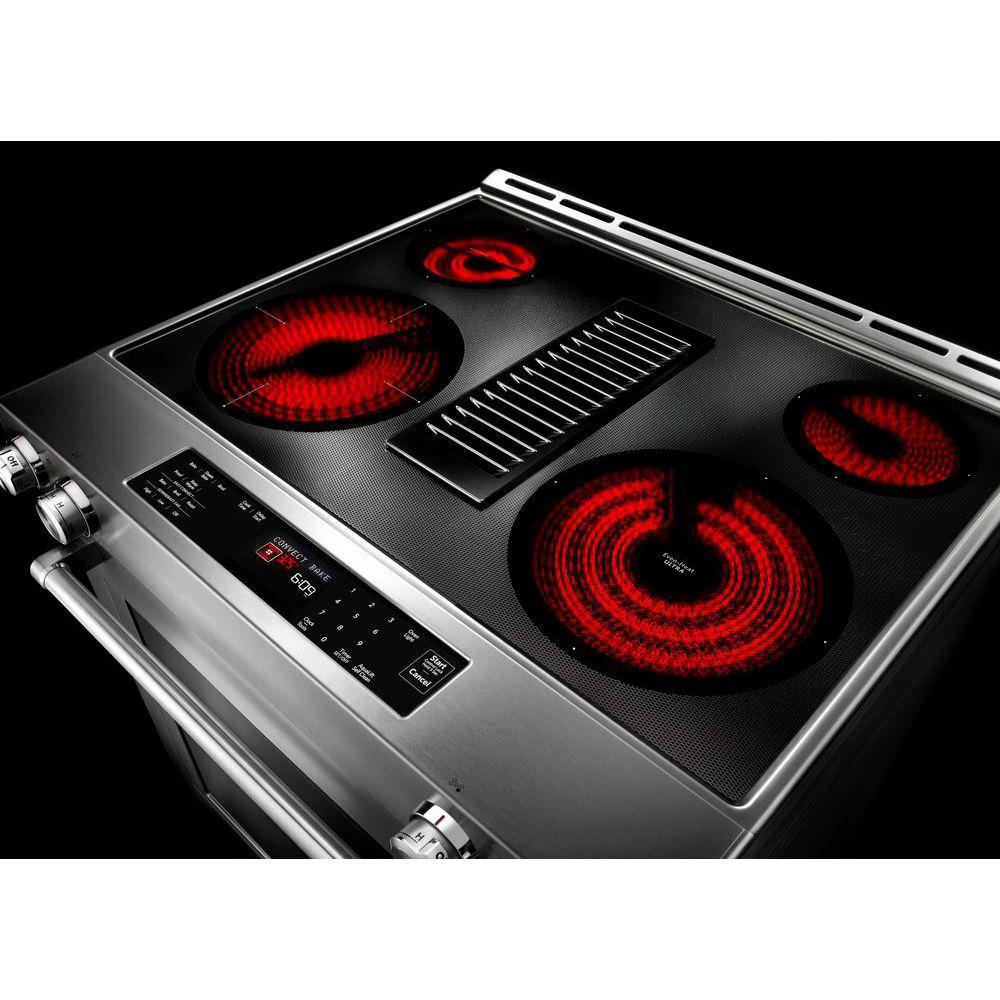

5 COOKING ELEMENTS INCLUDING A WARM ZONE
Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Element : 3000 Watts
• Left Rear Element : 1300 Watts
• Right Front Element : 3200 Watts
• Right Rear Element : 1200 Watts
• Left Rear Element : 1300 Watts
• Right Front Element : 3200 Watts
• Right Rear Element : 1200 Watts
Burner/Element Size
6", 10", 6", 12"/6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.4
Number of Ovens
Single
Features
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Downdraft
• Even-Heat™ True Convection
• Steam Rack
• EasyConvect™ Conversion
• Aqualift®
• Glass Touch Controls
• SatinGlide® Max Racks
• Side Trim Accessory Kit
• Selections : Bake, Steam Bake, Broil, Bread Proofing, Keep Warm Setting, Cook Time, Delay Start, Clock, Timer, Cancel/Off
• ADA Height and Operation Compliant
• Even-Heat™ True Convection
• Steam Rack
• EasyConvect™ Conversion
• Aqualift®
• Glass Touch Controls
• SatinGlide® Max Racks
• Side Trim Accessory Kit
• Selections : Bake, Steam Bake, Broil, Bread Proofing, Keep Warm Setting, Cook Time, Delay Start, Clock, Timer, Cancel/Off
• ADA Height and Operation Compliant
Electrical Information
Information
240V
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.31 inch(es) / 71.9 cm
Depth (Including Handles)
28.87 inch(es) / 73.34 cm
Weight
162 lb(s) / 73.48 kg
Additional Dimensions
• 1 3/16" (3.0 cm) height from cooktop to top of vent
• Width 29 7/8" (75.9 cm)
• Model/serial/rating plate (located behind the oven door on the top right-hand side of the oven frame)
• 36" (91.4 cm) height to top of cooktop edge with leveling legs screwed in all the way (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
• Depth 28 5/16" (71.9 cm) max. depth from front of console to back of range
• 28 7/8" (73.3 cm) max. depth from handle to back of range
• Width 29 7/8" (75.9 cm)
• Model/serial/rating plate (located behind the oven door on the top right-hand side of the oven frame)
• 36" (91.4 cm) height to top of cooktop edge with leveling legs screwed in all the way (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
• Depth 28 5/16" (71.9 cm) max. depth from front of console to back of range
• 28 7/8" (73.3 cm) max. depth from handle to back of range
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.56 inch(es) / 77.63 cm
Weight
180.01 lb(s) / 81.65 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049343655
